Hi-Target iRTK5 Rover + iRTK Base GNSS RTK Full Set
Bring your field survey setup together with the Hi-Target iRTK5 Rover + iRTK Base full set. A GNSS RTK surveying solution for topographic surveys and construction layout in the UAE. Contact GeoArc for package details and availability.
Technical brief
Hi-Target iRTK5 Rover + iRTK Base: a complete field surveying setup
Take your next survey from planning to fieldwork with a GNSS RTK package built around the Hi-Target iRTK5 rover and iRTK base. This full set brings together receiver, controller and survey accessories for teams working on topographic surveys, point stakeout and construction projects in the UAE.
Practical features for everyday survey work

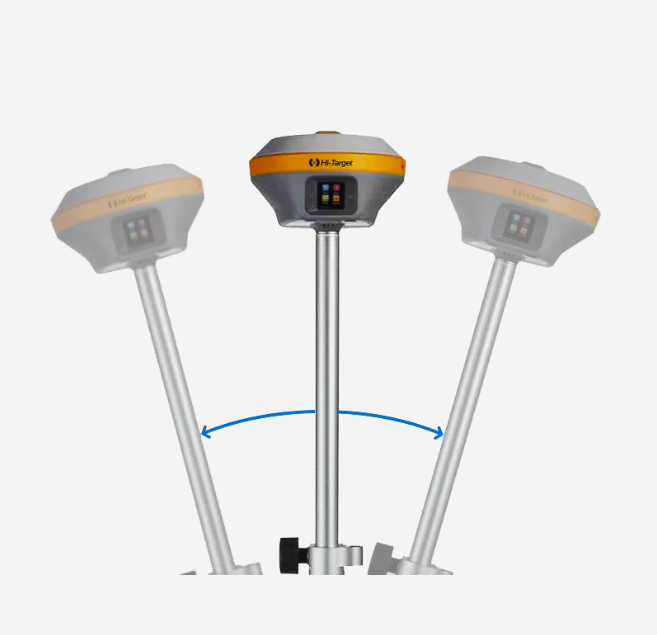

- IMU tilt surveying on the iRTK5: measure with a tilted pole for more flexible point collection.

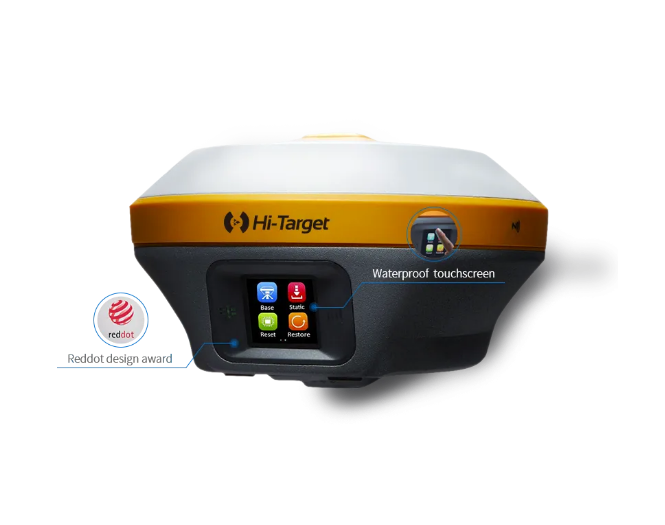

- Touchscreen receiver control: check receiver status and adjust settings from the iRTK5 OLED display.
- Multi-constellation GNSS tracking: support for GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS signals.
- Base-and-rover workflow: a package for teams that need their own field reference setup.
Package overview
The listed package includes the iRTK5 rover, iRTK base, iHand55 handheld controller, Hi-Target HDL460A external radio, antennas and cables, two aluminum tripods, a tribrach with optical plummet, a 2.2 m survey pole, a carbon-fiber bipod, power adapters and transport cases.
Contact GeoArc to confirm the exact receiver versions, controller, accessory quantities and software supplied with your order. GNSS performance depends on site conditions, satellite visibility and the correction setup.
Equip your next project with GeoArc
Looking for a Hi-Target GNSS RTK full set in the UAE? Send us your project requirements to check availability, confirm the package contents and request a quotation.
Additional technical specifications
• GNSS channels: iRTK5 rover: 1408 / 1760 (version dependent).
• RTK accuracy: iRTK5 rover: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS.
• Communications: iRTK5 rover: UHF 403–473 MHz · 4G/NTRIP · Wi-Fi · Bluetooth.
• Power / battery: iRTK5 rover: Removable rechargeable Li-ion; capacity/runtime depend on version.
• Instrument weight: iRTK5 rover: <1.3 kg including internal battery (new iRTK5).
• Protection: iRTK5 rover: IP67.
Manufacturer specifications depend on the stated version and operating conditions.
جيو ارك للمقاولات العامة CONTRACTING GENERAL GEOARC · Exclusive Hi-Target Agent — UAE
Hi-Target iRTK5 Rover + iRTK Base GNSS RTK Full Set
iRTK5-iRTK · GNSS & RTK · Hi-Target
Bring your field survey setup together with the Hi-Target iRTK5 Rover + iRTK Base full set. A GNSS RTK surveying solution for topographic surveys and construction layout in the UAE. Contact GeoArc for package details and availability.
- GNSS channels: iRTK5 rover: 1408 / 1760 (version dependent)
- Constellations: iRTK5 rover: GPS · GLONASS · Galileo · BDS · QZSS · NavIC · SBAS
- RTK accuracy: iRTK5 rover: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
- IMU / tilt: iRTK5 rover: Calibration-free IMU; tilt up to 60°
- Visual / imaging: iRTK5 rover: 1.3-inch OLED touchscreen
- IP rating: iRTK5 rover: IP67
