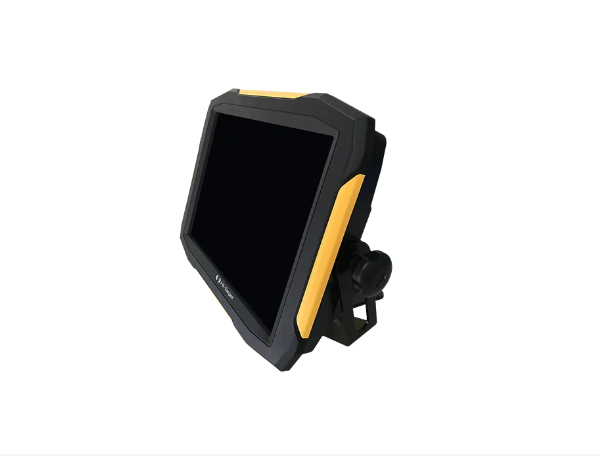

Hi-Target HD-Lite Single Beam Echo Sounder
Single-beam echo sounder for portable bathymetric survey.
Technical brief
HD-Lite single beam echo sounder for compact hydrographic setups.
• Single-beam depth measurement
• Portable field kit
• Pairs with GNSS and USV platforms
• Contact for current UAE package pricing
Additional technical specifications
• Operating frequency: 200 kHz. Depth range: 0.15–200 m.
• Depth accuracy: ±0.01 m ±0.1% of depth; resolution: 1 cm.
• Beam angle: 5°. Maximum transmit power: 600 W. Ping rate: up to 30 Hz.
• Sound velocity setting: 1370–1700 m/s.
• Computer: dual-core 1.92 GHz, 2 GB RAM, 32 GB SSD and 15-inch display.
• Data formats: NMEA DBT/DBS, DESO 25, ODOM and Hi-Target.
Specifications follow the Hi-Target HD-Lite brochure. Depth performance depends on water, bottom and installation conditions.
More Hi-Target instruments
جيو ارك للمقاولات العامة CONTRACTING GENERAL GEOARC · Exclusive Hi-Target Agent — UAE
Hi-Target HD-Lite Single Beam Echo Sounder
HD-LITE · Agriculture & Hydro · Hi-Target
Single-beam echo sounder for portable bathymetric survey.
- GNSS channels: Not applicable — echo sounder; external GNSS
- Constellations: Depends on connected external GNSS receiver
- RTK accuracy: Not intrinsic to sounder; depends on external GNSS
- IMU / tilt: Not applicable — external motion sensor if required
- Visual / imaging: 15-inch PC display
- Battery: External power: 10–30 V DC or 220 V AC
