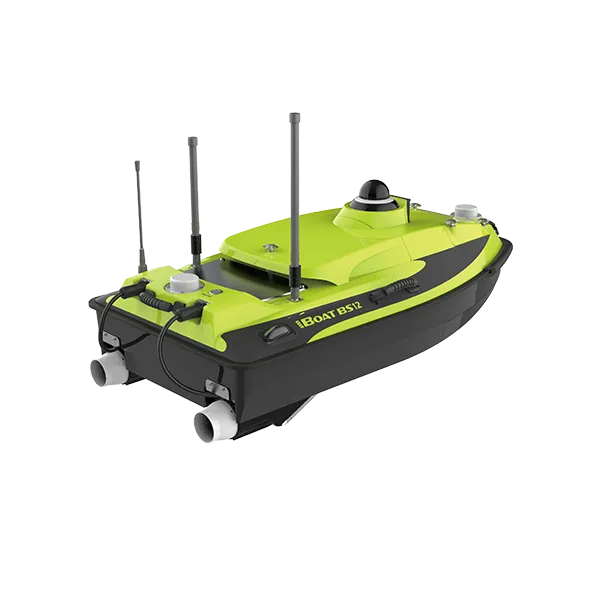

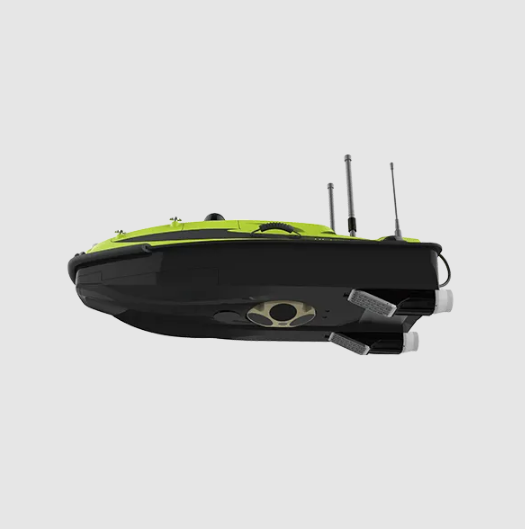

Hi-Target iBoat BS12 USV
Unmanned survey vessel for bathymetry and hydrographic data collection.
Technical brief
iBoat BS12 USV for hydrographic and bathymetric missions.
• Unmanned surface vessel
• Integrates with Hi-Target echo sounders
• Ideal for ports, lakes, channels and shallow coastal work
• Contact for a configured hydro package
Additional technical specifications — iBoat BS12
• Hull: 1185 × 593 × 397 mm; maximum payload: 25 kg.
• Maximum speed: 6 m/s; two brushless propellers.
• Built-in single-beam echo sounder: 200 kHz, 0.15–200 m depth range; accuracy ±0.01 m + 0.1% of water depth.
• Sonar beam angle: 5° ±0.5°. INS refresh rate: 200 Hz.
• Survey software: Hi-Survey Boat for acquisition and HiMAX for processing.
These specifications describe the BS12 in the 2025 manufacturer brochure. The separately named BS12 GEN2 has different specifications.
جيو ارك للمقاولات العامة CONTRACTING GENERAL GEOARC · Exclusive Hi-Target Agent — UAE
Hi-Target iBoat BS12 USV
BS12 · Agriculture & Hydro · Hi-Target
Unmanned survey vessel for bathymetry and hydrographic data collection.
- Constellations: GPS · BDS · GLONASS · Galileo
- RTK accuracy: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
- IMU / tilt: Integrated GNSS/INS; heading 0.2° at 1 m baseline
- Visual / imaging: 360° omnidirectional video; collision sensor 10–30 m
- IP rating: IP67
- Battery: One battery: 4.5 h at 1.5 m/s (BS12, not GEN2)
