Hi-Target HD-MAX II Hydrographic Solution
Complete HD-MAX II hydrographic solution for professional bathymetry.
Technical brief
HD-MAX II is Hi-Target’s professional hydrographic package.

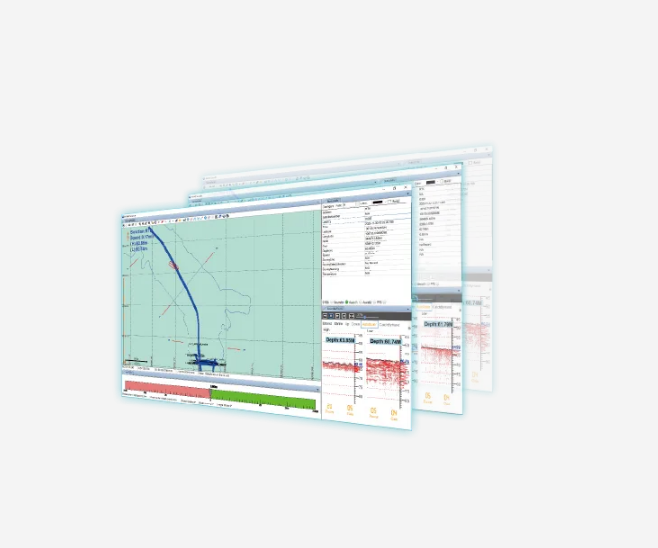

• Integrated echo sounding and positioning workflow
• Charting and volume-ready outputs
• Scoped by GeoArc to vessel and project conditions
Additional technical specifications

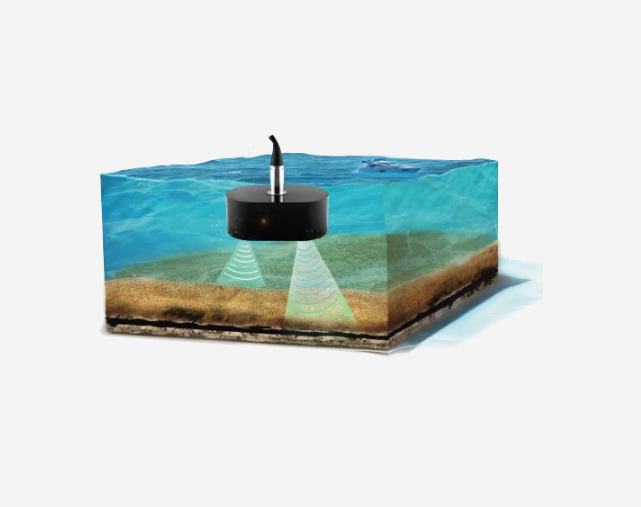

• Dual-frequency operation: high channel 100 kHz–1 MHz; low channel 10–50 kHz.
• Depth range: 0.15–300 m at 200 kHz; 1–2000 m at 24 kHz.
• Depth accuracy: ±0.01 m ±0.1% of depth at 200 kHz; ±0.1 m ±0.1% of depth at 24 kHz.
• Resolution: 1 cm at 200 kHz; 10 cm at 24 kHz. Ping rate: 50 Hz.
• Computer: quad-core 2.0 GHz, 16 GB RAM, 128 GB + 1 TB SSD.
Figures follow the Hi-Target 2025 HD-MAX II brochure and depend on the transducer, configuration and survey conditions.
More Hi-Target instruments
جيو ارك للمقاولات العامة CONTRACTING GENERAL GEOARC · Exclusive Hi-Target Agent — UAE
Hi-Target HD-MAX II Hydrographic Solution
HD-MAX-II · Agriculture & Hydro · Hi-Target
Complete HD-MAX II hydrographic solution for professional bathymetry.
- GNSS channels: Not applicable — dual-frequency echo sounder; external GNSS
- Constellations: Depends on connected external GNSS receiver
- RTK accuracy: Not intrinsic to sounder; depends on external GNSS
- IMU / tilt: External sensor integration; no rover tilt specification

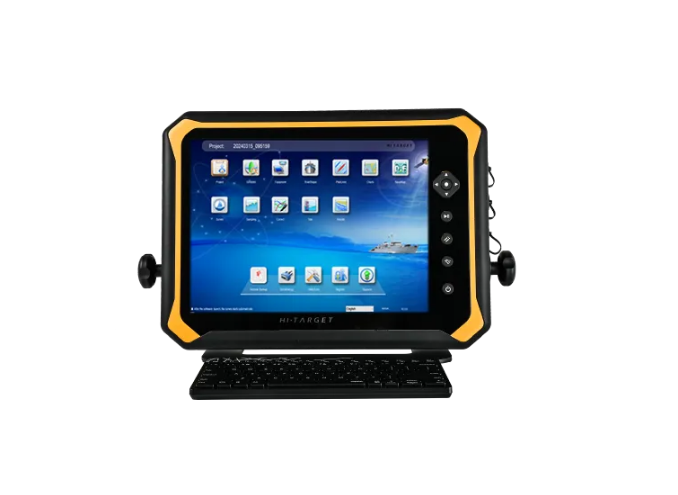

- Visual / imaging: 15-inch display, 1280 × 1024
- IP rating: IP66
