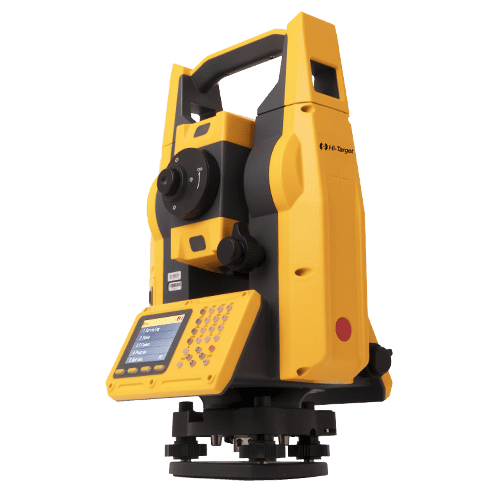

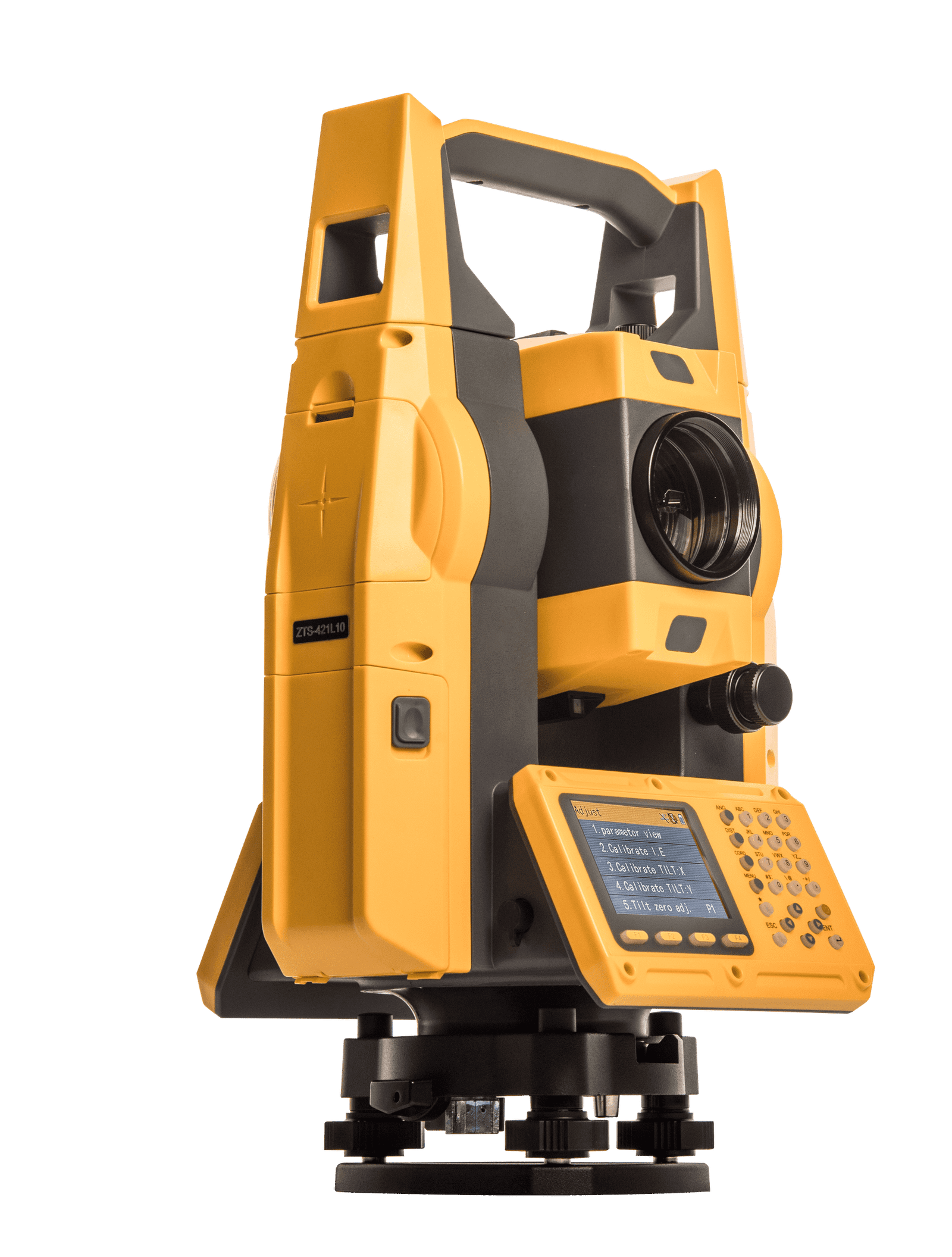

Hi-Target HTS-521L10 Total Station – Complete Surveying Package

Reliable measurements. Practical field performance. Complete support.

Equip your survey team for everyday surveying, construction, setting-out, and site work with the Hi-Target HTS-521L10 Optical Total Station Full Set.

Designed for practical field use, the HTS-521L10 combines optical sighting with electronic angle and distance measurement, providing clear readings and efficient control for routine surveying and construction applications.

Complete Package Includes

• Hi-Target HTS-521L10 Total Station × 1
• Big Prism Pole × 1
• Big Prism with Target Sheet × 1
• Mini Prism with Pole Set × 1
• Heavy-Duty Wooden Tripod × 1

GeoArc Support Included

• 12-Month Warranty
• 12-Month Calibration
• Product Training
• After-Sales Technical Support

A complete surveying package backed by GeoArc support, ready for professional field use in the UAE.

Features for your working day

• 2-second angular accuracy: support for survey angle measurements and setting out.
• Reflectorless range up to 1000 m: measure suitable targets without a prism, subject to surface reflectivity and site conditions.
• 2.8-inch color display: view field information on a bright screen with backlit keys for low-light operation.
• Trigger key: start a measurement directly while working through your points.
• Dual-axis tilt sensor: supports compensation during measurement.

From topographic surveys to construction layout

Use the HTS-521L10 for collecting terrain points, setting out construction positions and engineering survey tasks. Built-in measurement programs help organize routine field operations.

Move data from the field to the office

USB data transfer and supported formats such as CSV, TXT and DXF provide options for exchanging survey data. Confirm the formats and software connections required for your existing workflow.

Full-set contents and training

The listing is offered as a full set with accessories. Ask GeoArc for an itemized quotation confirming the tripod, prism, pole, batteries, charger and carrying case where included. Training is available on request; confirm its scope and terms with our team.

Measurement range and accuracy depend on target characteristics, atmospheric conditions and instrument setup. Refer to the official brochure and confirm the supplied version before ordering.

Request a quotation in the UAE

Contact GeoArc for HTS-521L10 availability, package details and a quotation for your next survey project.

Additional technical specifications

• Operating system: Real-time operating system.

• Telescope magnification: 30×.

• Power / battery: 7.4 V / 3000 mAh; 18 h typical, 36 h optimal angle measurement.

• Protection: IP65.

• Prism range: 5000 m in general conditions, 6000 m in good conditions; prism accuracy: 2 mm + 2 ppm. Reflectorless accuracy: 3 mm + 2 ppm.

Manufacturer specifications depend on the stated version and operating conditions.
