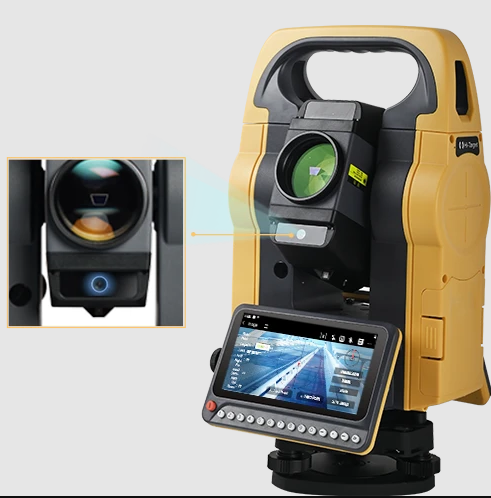

Hi-Target HTS-720: bring your design to the survey screen

Take your drawings from the office to the field with the Hi-Target HTS-720 Android Total Station full set. Its touchscreen interface and onboard surveying software support point collection and construction layout for surveyors and engineering teams in the UAE.

A clear view of your next task

• 5.5-inch HD touchscreen: view survey information and work through field tasks on a large color display.
• Android with T-Survey: access measurement functions and settings through the onboard software.
• CAD stakeout: import drawings and select points and lines for setting out.
• Built-in 8MP camera: record point imagery and use visual guidance during stakeout.

From point collection to construction layout

Use the HTS-720 for topographic surveys, building layout and engineering measurement. Available software functions also support road, bridge and tunnel workflows. Confirm the required software version and functions when selecting your package.

Choose the specification that fits your project

The model is offered with 1-second or 2-second angular accuracy options. Confirm the supplied version in your quotation. Reflectorless measurement range and accuracy depend on the target surface, visibility and measurement conditions; consult the brochure for full details.

Full set with standard accessories

This listing is for the HTS-720 full set with standard accessories. Ask GeoArc for an itemized list confirming batteries, charger, carrying case, tripod, prism and pole where included. Only the equipment and software stated in the quotation are supplied.

Request your HTS-720 quotation in the UAE

Tell GeoArc about your drawings and survey tasks. Contact us to check availability, confirm the instrument version and package contents, and request a quotation.

Additional technical specifications

• Distance measurement range: Prism: 5000 m, up to 6000 m in good conditions; reflectorless: 1000 m.

• Telescope magnification: 30×.

• Compensator: Dual-axis, ±6′; accuracy 1″.

• Power / battery: 7.4 V / 6600 mAh; up to 10 h, conditions apply.

• Instrument weight: 5.75 kg including battery.

• Protection: IP65.

Manufacturer specifications depend on the stated version and operating conditions.
