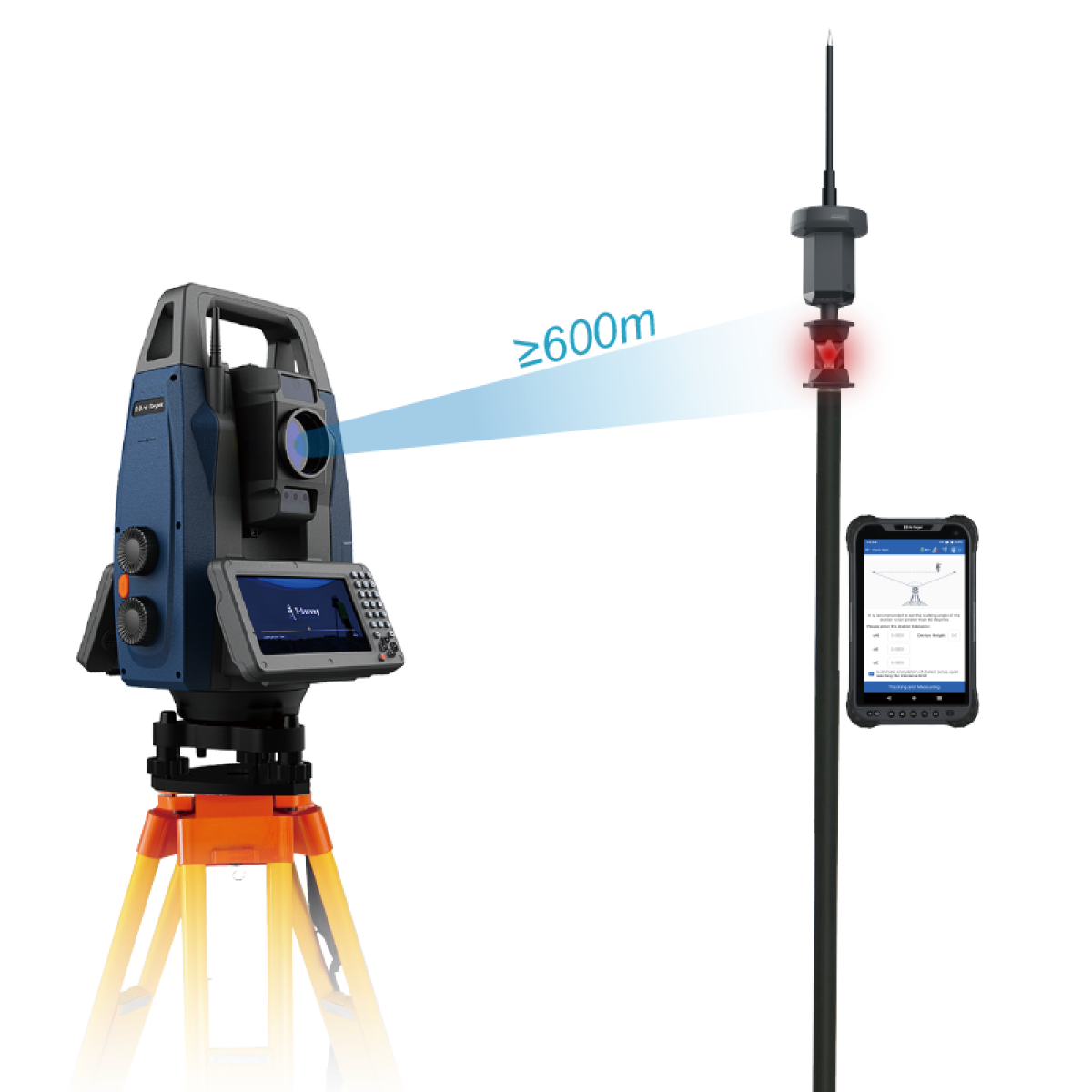

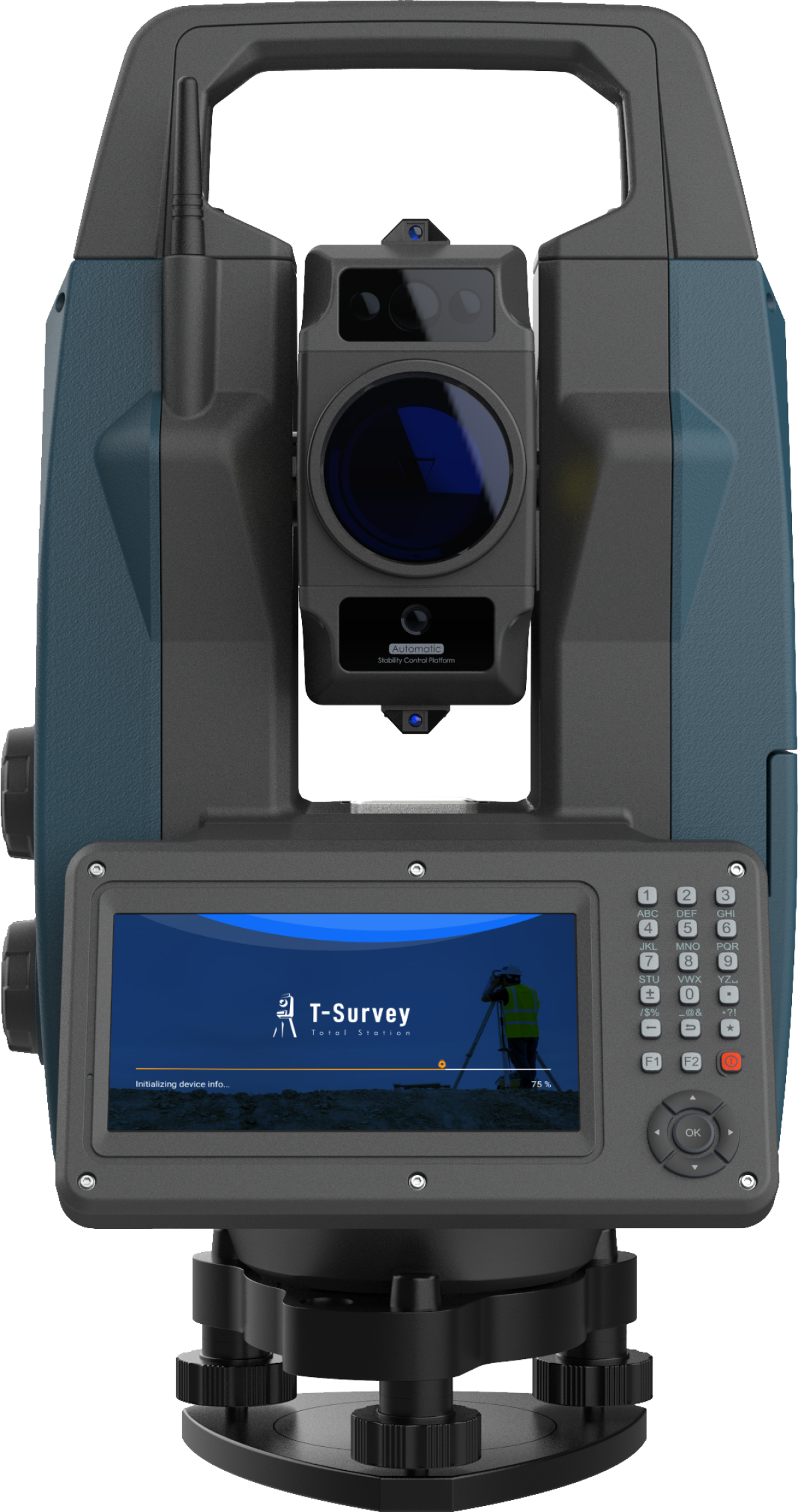

Hi-Target HTS-820: control your survey from where the work happens

Bring robotic operation to your next construction or engineering survey with the Hi-Target HTS-820 Robotic Total Station. With a compatible pole control system, the instrument supports a one-person workflow for collecting survey points and setting out designs on site.

Features that support field productivity

• Intelligent prism tracking: automatic target following helps you work as you move between points.
• Target reacquisition: hybrid tracking helps recover the prism when it becomes visible again after an obstruction.
• Image-assisted station setup: imaging technology supports centering and instrument-height measurement.
• Smart prism search: different search modes help locate the target at different working distances.
• Remote operation: a compatible pole control system lets the surveyor operate the total station from the prism position.

For construction layout and engineering surveys

Use the HTS-820 for point collection, site layout and engineering measurement tasks. Plan the setup around clear instrument-to-prism visibility, suitable control points and the requirements of your project.

Configuration and local support

GeoArc provides commissioning, training and warranty in the UAE. Ask our team for the applicable service terms and an itemized quotation covering the instrument, pole control system, prism, controller, software, batteries and mounting accessories where included.

Tracking performance and measurement accuracy depend on the selected configuration, visibility and site conditions. Confirm the exact instrument specifications and supplied accessories before ordering.

Request your HTS-820 quotation

Tell GeoArc about your site and survey workflow. Contact us for availability, configuration advice and a quotation for the Hi-Target HTS-820 Robotic Total Station in the UAE.

Additional technical specifications

• Angular accuracy: 2″ (2025 manufacturer specification; confirm version).

• Distance measurement range: Prism: 1.5–5000 m; reflective sheet: 1.5–500 m.

• Operating system: Android 9.0.

• Telescope magnification: 30×.

• Compensator: Dual-axis; compensation ≥6′; accuracy ≤1″.

• Power / battery: Rechargeable battery; ≥6 h measurement mode (2025 specification).

• Instrument weight: 8.0 kg.

• Protection: IP65.

Manufacturer specifications depend on the stated version and operating conditions.
