Included in the Full Bundle

GNSS RTK Equipment

• V500 GNSS RTK System × 1
• iRTK5 GNSS RTK System – Base × 1
• iHand55 Handheld Controller × 1
• External Radio HDL460A (Hi-Target) × 1

Surveying Accessories

• Aluminum Tripod × 2
• Tribrach with Optical Plummet × 1
• Survey Pole Hi-Target, 2.2 m × 1
• Carbon Fiber Bipod for Survey Pole × 1
• Survey Benchmark × 2
• Steel Tape, 3 m × 1
• Short Connecting Rod × 1
• Extension Rod × 1
• Extension Rod Accessories Package × 1
• Tribrach Aluminum Sheet × 2

Radio & Communication Accessories

• Radio Receiving Antenna × 2
• UHF-460C Transmitting Antenna × 1
• RF-35A Transmitting Antenna Connector × 1
• TB-1 Antenna Connector × 1
• Radio Communication Cable × 1
• Power Cable for External Radio × 1

Power & Data Accessories

• Power Adapter × 2
• USB Data Cable × 3
• Touch Pen × 1
• iHand55 Controller Pallet × 1

Documentation & Protection

• Certificate of Quality × 2
• Warranty Card × 2
• QR Code Manual Card – Hi-Target × 1
• Protective Plastic Carrying Cases × 2
• Envelope × 2

Warranty, Calibration & Support

• 12-Month Warranty against manufacturing defects
• Professional and Reliable Calibration with calibration certificate
• Full Training on equipment setup, operation, and field use
• Technical Support for installation and operation
• After-Sales Service to support the customer throughout the equipment lifecycle

The package is supplied as a complete GNSS RTK surveying solution, including the required base, rover equipment, controller, external radio, surveying accessories, and field support for reliable and professional operation.

• GNSS channels: Rover: 1408 (listed configuration).

• Satellite systems: Rover: GPS · GLONASS · Galileo · BDS · QZSS · NavIC · SBAS.

• RTK accuracy: Rover: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS.

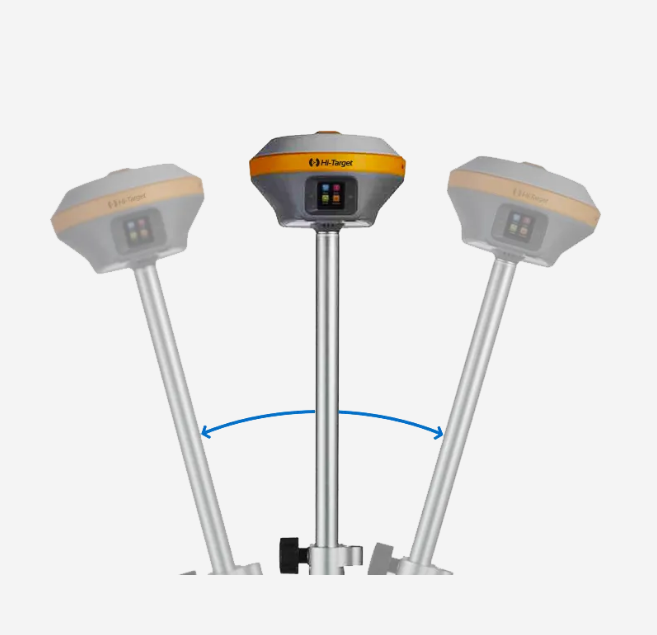

• Tilt measurement: Rover: Built-in IMU; tilt uncertainty 8 mm + 0.7 mm/°.

• Display / imaging: Rover: HD starlight camera; AR visual stakeout.

• Communications: Rover: UHF 410–470 MHz · NTRIP · Wi-Fi · Bluetooth 5.2 · USB-C.

• Power / battery: Rover: Up to 24 h in RTK rover mode; conditions apply.

• Instrument weight: Rover: ≤0.75 kg (receiver).

• Protection: Rover: IP68; iRTK5 base: IP67.

Manufacturer specifications depend on the stated version and operating conditions.
